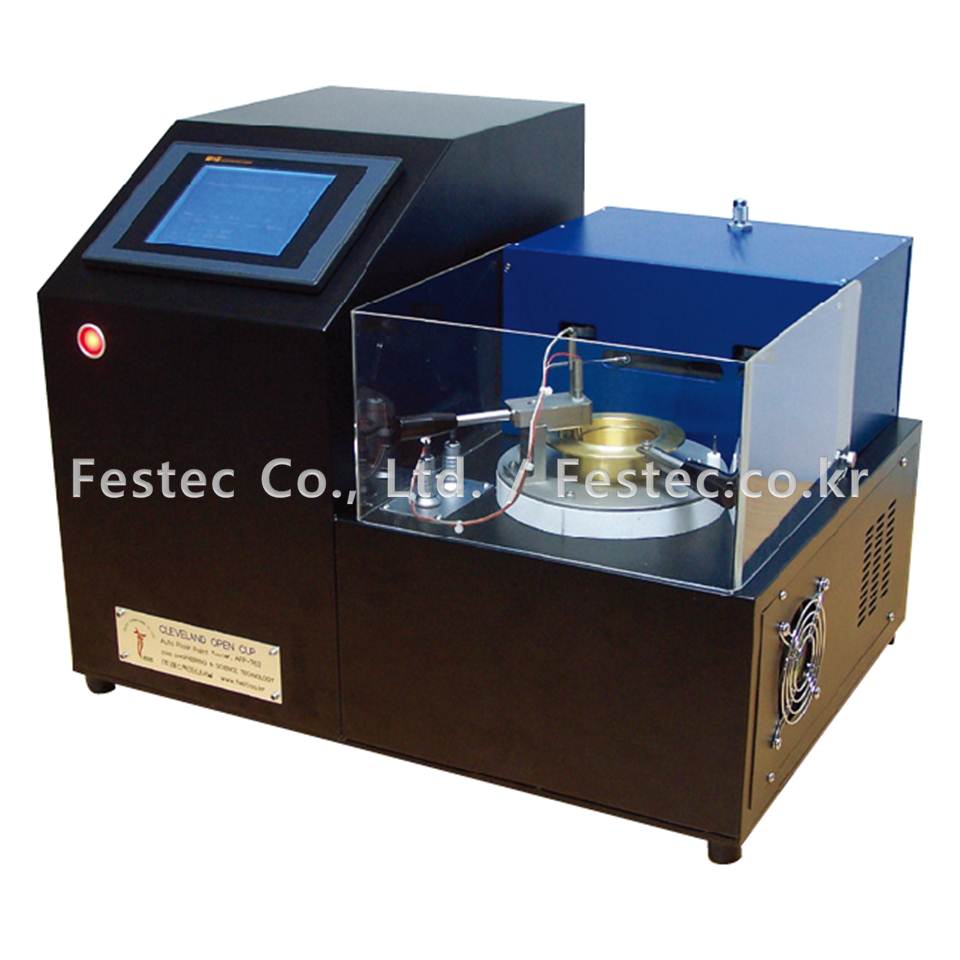

Cleveland Open Cup Auto Flash Point Tester, Auto Flash Point Analyzer, Cleveland Open Tester, AFP-762, KS M 2010, ISO 2592
FESTEC¡¯s AFP 622 Cleveland Tester automatically measures flash point and ignition point of petroleum products, whose flash point is over 80¡É, except for crude oil and oil fuel.
FESTEC¡¯s AFP 622 Cleveland Open Cup Auto Flash Point Analyzer automatically measures flash point of crude oil and petroleum products easily and conveniently compared with manual-type analyzer. About 80 ml of specimen is added to specimen cup and is slowly heated in 5.5¡¾5¡É per minute. Test flame is moved over the specimen cup at an interval of 2¡É and minimal temperature that flash is incurred by vapor of specimen is obtained. FESTEC¡¯s AFP 622 Cleveland Tester fully complies with KS M 2010 standard and ISO 2592 standard. It automatically performs test with PLC (Programmable Logic Controller) and Touch Screen (5.5¡±) and is very easy and convenient for managing test results as about 20 test results are automatically saved and removed. Thus, AFP 622: Cleveland Open Cup Auto Flash Point Analyzer is an optimal tester for quality control and R&D of petroleum products by determining flash point of oil products.


• KS M 2010: Testing methods for flash point of crude oil and petroleum products

• ISO 2592: Determination of flash point_Cleveland Open cup method
- Measuring Range: 80 ¡É to 400¡É
- Test Mode: F&Flash, Flash, Special(Fast Search)
- Display & Control: 5.5¡± Touch type Screen Monitor
- Temperature Sensor: K-type thermocouple in stainless steel sheath
- Flash Detector: By CdS (Sulfuration-cadmium) Photoconductive Cell
- Heater: Plate type heater (800 W, 220V)
- Ignition Source: Gas Ignition with Electric igniter
- Cooling after Test: By compressor air and sirocco fan
- Barometric Correction: By entering the barometric pressure reading
                                    through the control panel
- Laboratory Environment : Ambient temperature (0 to 40¡É), RH Less than 90 %
Specification
Size 550(w) ¡¿ 400(D) ¡¿ 320(H)
Power 220 V AC, 60 Hz, 10 A
Weight 21 kg
Manual Supplied
Utilities Propane or Natural Gas by Regulator
• Due to Automation Mode, speed of temperature increase is automatically determined after the expected flash point is determined and Flame Nozzle is automatically operated in each temperature increase for finding flash point of sample.

• Atmospheric analyzer for Pressure Correction was installed and test result is automatically calculated and converted into the result measured in the standard atmospheric pressure.

• Durable Electric Igniter with DC 24V was installed for making continuous flame in Test Flame Nozzle

• Solvent-resistant Protection Foil was installed for easy and convenient management with Touch Screen Monitor (5.5¡±) and minimization of damage.

• Calibration: Correct calibration is available and correct test result can be gained as temperature and pressure are calibrated in 12 points and 2 points. In addition, calibration is easy; calibration is completed by entering offset in the desired temperature on display of the tester.

• Test Result: Many of other testers store only one data for the recently measured test, whereas FESTEC AFP 762 could automatically save and remove about 20 Test Results for easy management of test results.

• Preheating: Temperature of Heating Compartment is kept under the given conditions according to the expected flash point of sample. Therefore, standby time for test could be shortened.
