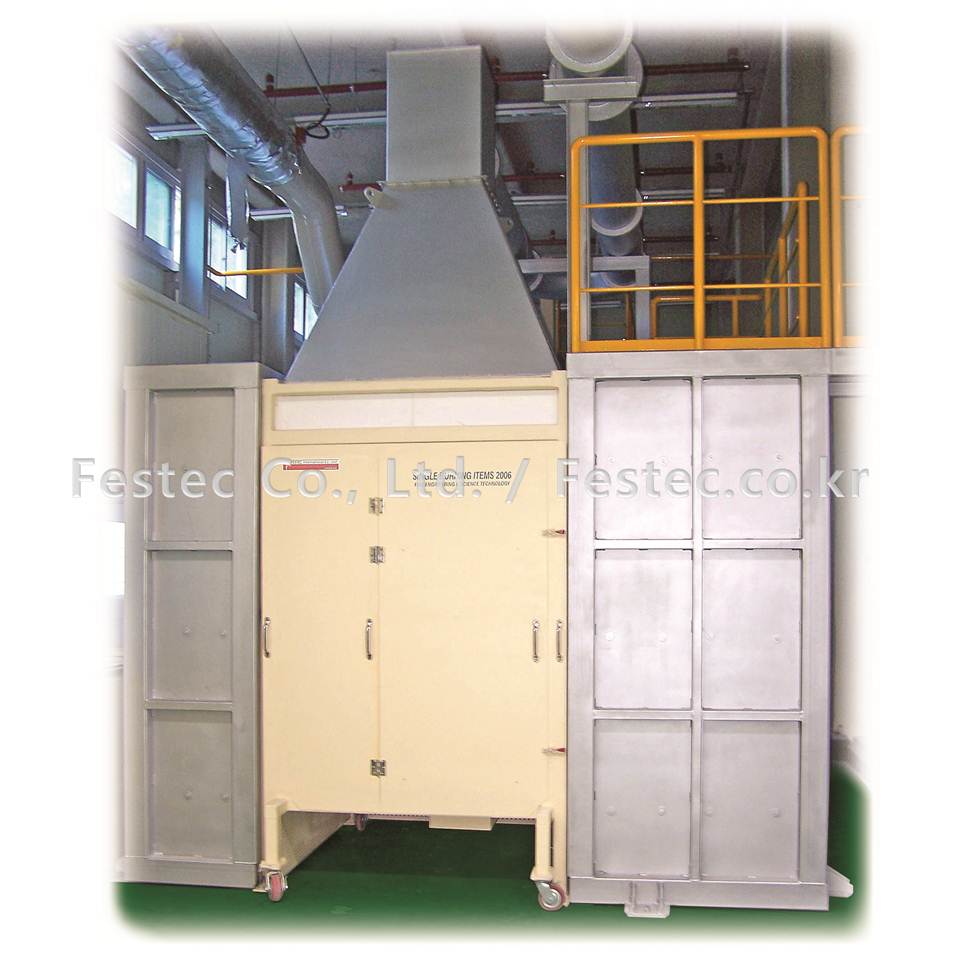

Single Burning Items, Medium scale calorimeter : Avg, max 3 MW/m2, SBI 2006, prEN 13823, BS EN 13823, Test Methods of Internal Finished Materials for European Buildings
Single Burning Items(SBI), as European’s the evaluation of fire-resistance performance of building materials ,measures heat release rate (H.R.R), smoke growth rate index (SPR), oxygen consumption, CO, CO2 production, mass loss rate and so on.
FESTEC’s Single Burning Items test method is to measure response behavior of the product for building materials (except flooring materials) against fire when the product for building materials is exposed to heat attack(by Sand-Box burner of propane fuel) from Single Burning Items.
The specimen is settled on the Trolly (moving cart) located in Frame just below the emission system. Response of specimen against burner is displayed by mechanically and visually. In mechanically, it calculates Heat Release Rate (H.R.R) and Smoke Release Rate (S.R.R), and physical properties are evaluated by visual observation. Measuring range of SBI, Fire Growth Rate Index (FIGRA) by oxygen consumption quantity of combustion products is the most representative measuring element; otherwise, representative measuring elements are oxygen consumption, CO, CO2 production, Smoke Growth Rate Index (SMOGRA) and so on. The maximum heat release rate can be measured up to 1MW.


• prEN 13823: Reaction to fire tests for building products-Building products excluding floorings exposed to the thermal attack by a single burning item
• BS EN 13823: Reaction to fire tests for building products-Building products excluding floorings exposed to the thermal attack by a single burning item
Size
  Test Room (mm) : 3,000 (w) × 3,000 (d) × 2,600 (h)
  Hood  (mm) : 1,450 (w) × 1,255 (d) × 1,093 (h)
  Sandbox Burner (mm) : 250 (w) × 250 (d) × 80 (h)

Power
  Voltage : 220 V-60 Hz 20 A

Exhaust : 0.55 ㎥/s ~ 0.65 ㎥/s

Control Unit
• Main Sandbox Burner & Trolley
• Fixed Frame & Auxiliary Burner
• Hood
• Collector
• Measuring Tube(J-Shaped)
• Sandbox Burner ( Main & Auxiliary )
• Gas Diverter
• Smoke Exhaust System
• Three Thermocouples(by EN 60584-1)
• Bi-directional Probe
• Gas Sampling Probe
• Analyzer ( O2 ,CO2, CO )
• Light Attenuation System
• Atmospheric Pressure Measurement
• Cold Trap

Utilities
• Propane Gas & 2 Stage Regulator
• N2 & CO/CO2 Gas & 2 Stage Regulator
① Average rate of heat release[RHRav(t)]
② Total Heat Release[THR(t)]
③ 1000 * [RHRav(t)/(t-300)]
④ Fire Growth Rate Index[FIGRA]
⑤ Total Heat Release[THR600s]
⑥ Occurrence of Lateral Flame Spread
⑦ RSPav(t)
⑧ Total Smoke Production[TSP(t)]
⑨ 10000 * [RSPav(t)/(t-300)]
⑩ Smoke Growth Rate Index[SMOGRA]
⑪ Total Smoke Production[TSP600s]
