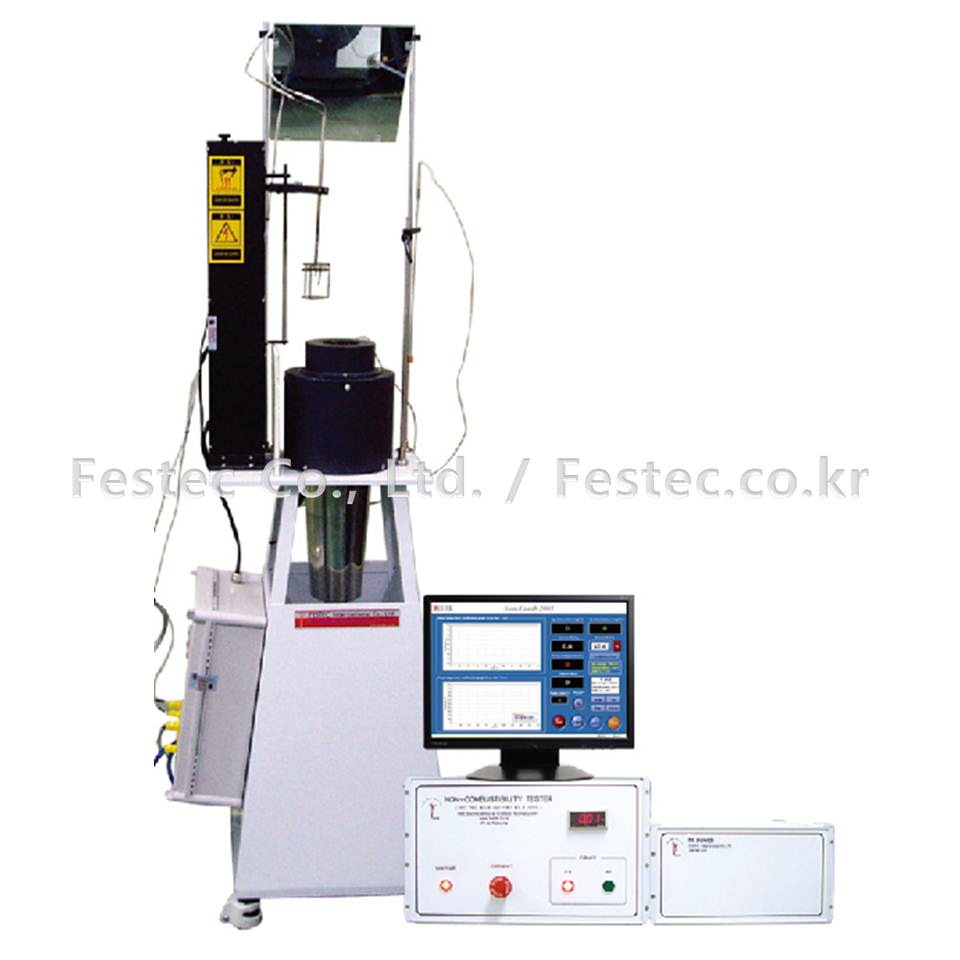

Non-combustibility tester for noninflammable material, ISO 1182, KS F ISO 1182, KS F 2271
Non-Combustibility Tester measures incombustibility and combustibility of uniform building material and non-uniform building material of actual element.
The evaluations (results) are rising temperature in the furnace, basic mass loss and ignition of specimen.
The only FESTEC’s equipment fully satisfies KS F 2271, KS F ISO 1182 and ISO 1182 as international standards in the same time.
This equipment uses module type temperature controller to be stable over 60 minutes in the furnace condition of 750±5℃ and meets precise test result.
And another advantage is the automatic up-down specimen movement device for accurate results as well as user-friendly process. Thus, it doesn't matter who is test-users.
RS 232C communication and Data Acquisition Board is able to be accurate Interface of test values, so user can test the whole function and test by PC easily and automatically.
• ISO 1182 : Reaction to fire tests for building products - Non - combustibility test
• KS F ISO 1182 : Method of non-combustibility test of building products
• KS F 2271 : Testing method for incombustibility of internal finish material and element of buildings
Specification
Size
400(w) × 400(D) × 1,270(H)
Power
220 V AC, 60 Hz, 10 A
Weight
About 40 kg
Manual
Supplied
Control Unit
530(w) × 270(D) × 280(H)
Utilities
Personal Computer and PC Printer
• Single Zone Furnace operable at up to 900 ℃ with the NIKROTHAL Ribbon Heater
• 750±5℃ temperature auto control with TPR
• Furnace facilitating maintenance and replacement
• Up/down automatic moving system for correct positioning of test sample and user’s convenience
• Mirror to observe the ignition quality of test sample
• RS 232C communication and DAQ Board-adopted interface
• Auto testing by DAQ Board and PC
• Alarm temperature-based overcurrent shut-off system for user’s safety
• Software (Non-Comb 2005) to print out reports based on exact data result and each standard
• Mass Loss(g) and Rate(%)
• Ignition Time(s) and Sustained Flaming(s)
• Initial & Maximum Furnace Temperature(℃)
• Final Furnace Temperature(℃)
• Maximum Specimen Center Temperature(℃)
• Final Specimen Center Temperature(℃)
• Furnace Temperature Rise(℃)
• Specimen Center & Surface Temperature Rise(℃)
• Differential Test Result by Standards
(ISO 1182:1990, KS F ISO 1182: 2004, IMO FTPC Pt.1: 1998, KS F 2271: 1998)
