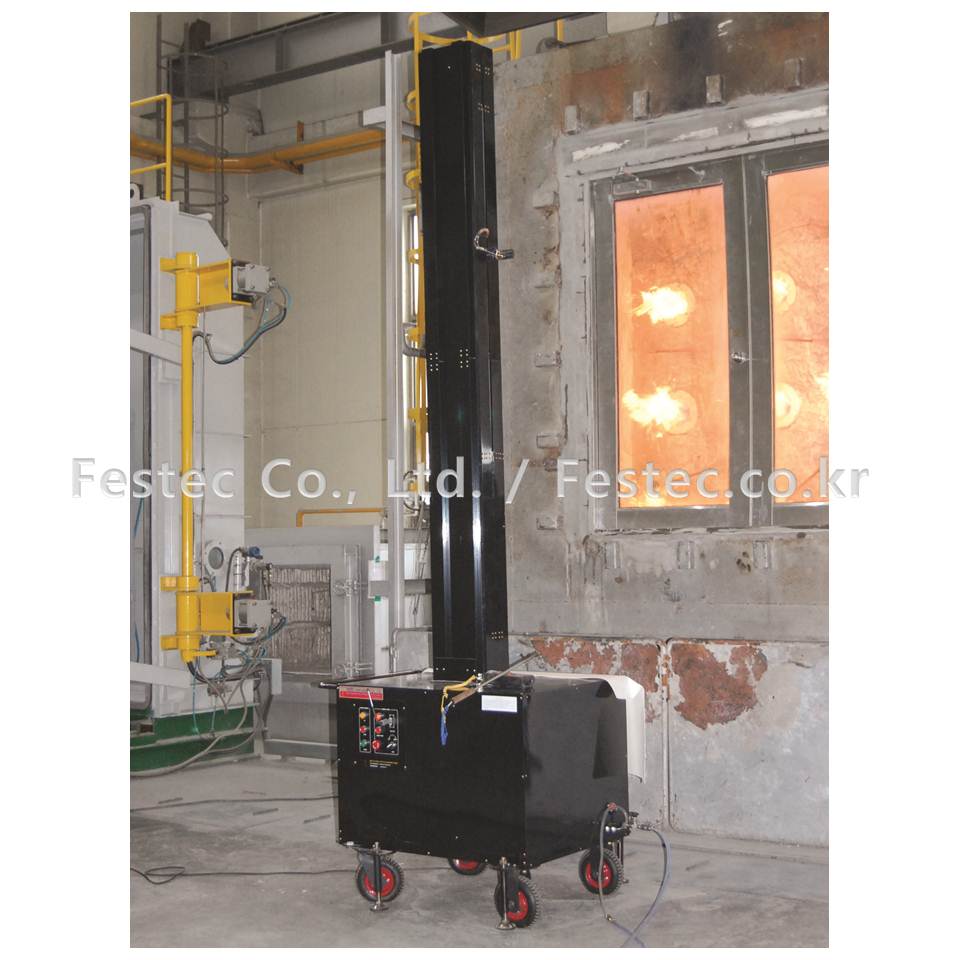

V.F Heat Flux Tester, VFHT, Vertical Furnace Critical Heat Flux Tester, Modified apparatus by Fire Testion Procedure Code 1, KS F 2268, FTP Code 1
It is a heat (radiant heat) flux tester of limited window or fire-retardant door to prevent spread of fire and to secure exit path near the window or fire-retardant door.
This tester is used to allow heat radiation test for supplementing fire protection test of windows in Grade A, Grade B, and Grade F compartment for ships specified in FTP Code I / Annex 1/Vol. 3/ Appendix 1. It refers to heat flux testers through windows to prevent spread of fire and secure exit path near the window as window is featured by limitation of heat radiation.
• IMO FTP CODE I
IMO FTP Code (International Code for Application of Fire Test Procedures,
Resolution MSC.61(67)) : Annex 1 : Fire test procedures, Appendix 1 : Thermal radiation test supplement to fire resistance tests for windows in “A”, “B” and “F” class divisions
① Heat Flux Meter
- It measures heat flow released from the fire resistant and protection furnace.
- Gardon Gage type, 0~100 kW/m2
- Water is cooled to prevent Heat Flux Meter from overheating in measurement.
② Thermocouple
- It measures temperature released from the fire resistant and protection furnace.
- Sheathed K Type
- 0 ~ 1,000 ℃
③ Laser Pointer
- It displays accurate measuring point in the front panel of the fire resistant and protection furnace.
- DC 5V
④ Auto Rolling Device
It is used to move the Measuring Section into the accurate measuring point
- Motor
- Timing Belt
- Pulley
⑤ Telecommunication antenna (BlueTooth)
- It is used to send collected data to PC.
- It is composed of one pair of BlueTooth antenna.
Specification
Size
1,000 (w) × 800 (D) × 3,750 (H)
Power
220 V AC, 60 Hz, 10 A
Weight
150 kg
Utilities
Auto Moving System, Heat Flux meter, Water Cooling System
• Measuring Section for measuring heat flow and temperature released from the fire resistant and protection furnace
• As using Heat Flux Device that type is Gardon Gage Type and measuring range is 0~100 kW; we are supplied from MEDTHERM COORPATION in USA.
• Auto Rolling Device for moving the Measuring Section to the accurate measuring point
• Laser Pointer enables users to see measured point to the naked eye.
• Water Cooling System for preventing the Heat Flux Meter from overheating thus it does not required extra cooling system or lines.
• Data from fire resistant and protection test is automatically saved in real-time. (as Excel File)
Data is saved in an Excel File and easy for checking and editing
• Data is sent with telecommunication (BM1001) for easy movement and management of tester.
• Wireless communication antenna (Blue Tooth System) for sending collected data to PC
• Data Acquisition System enables LAN communication by using NI Field Point
• All screen interfaces are based on the graphic environment for user convenience
• Heat resource can be measured by measuring on radiation heat of heat resource (Heat Flux, kW/㎡)
• Buttress and Data Acquisition device of Heat flux device is designed to be easily carried or moved
• Data Acquisition device can measure temperature and pressure as well as radiation heat additionally.
• Temperature released from the vertical furnace (℃)
• Heat flux released from the vertical furnace (kW/㎡)
• Temperature of heat (℃) or Radiation released size (kW/㎡)
