Conical Heater 5 Step Temperature Controller, T/C 5Step_CC, 5 Step Temperature Controller, ISO5660
FESTEC Conical Heater three step temperature controller measures behavior of combustion of specimen by change in temperature and temperature increase time by simulating the actual fire for the modified test methods of ISO 5660 Test Method. And also it measures behavior of combustion of specimen by change in conical heater’s Three step heat flux, temperature and temperature increasing time though three stages by simulating the actual fire for the modified test methods of ISO 5660 Test Method. In a fire, temperature increase is slow after the initial ignition and is rapidly changing as the fire spread. The controller allows observation of conditions in specimen by setting the sustained time of changed time. This controller may be interlinked with measuring devices of the existing Cone Calorimeter. It is an optional device for cone calorimeter, which converts temperature in three steps according to the Cone Calorimeter Method.
This controller is designed to allow user to directly set the desired temperature, speed of temperature increase, and sustained time after temperature increase with Touch Screen. Touch Screen enables user to easily control the tester.
• ISO 5660-1:2002
Reaction-to-fire tests -- Heat release, smoke production and mass loss rate
-- Part 1: Heat release rate (cone calorimeter method)

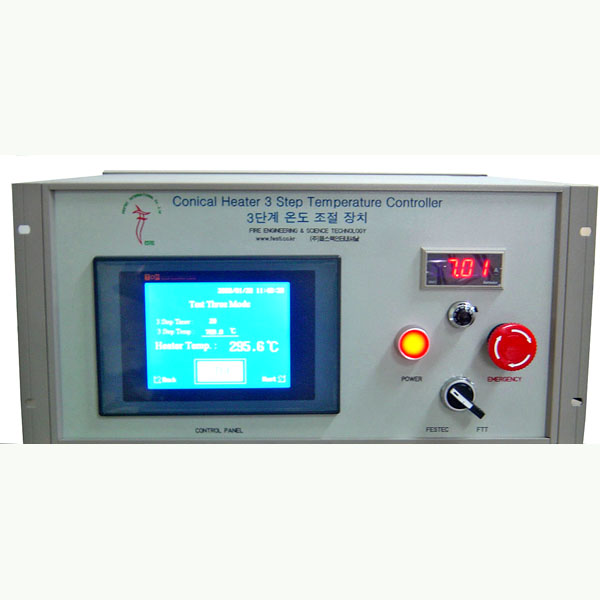

① 5.7” LCD Touch Panel: Touch Screen embedded with temperature increase control program. Touch panel allows easy controlling the set temperature, temperature increase time, and temperature sustained time.
② Power Switch: Device for supplying power to control program.
③ Selection Switch: User could select either temperature controller mode by the existing Cone Calorimeter method or 5-step temperature controller mode for user-customization.
④ Emergency Switch: Emergency switch for blocking power in the event of unexpected fire risk.
⑤ Control Rack: Control system is embedded.
Specification
Size
445(w) × 355(D) × 220(H)
Power
220 V AC, 60 Hz, 25 A
Weight
7.6 Kg
Utilities
None
① User could directly set virtual temperature, speed of temperature increase, and sustained time of heater in the existing Cone Calorimeter test method.
② It is easily attached to the existing Cone Calorimeter.
③ User easily controls the tester in the Touch Screen.
• Measurement of range of change in temperature (graphically displayed in screen)
• It supports measurement of heat flow for 5-step temperature in Cone Calorimeter.
