FESTEC’s IEC 60331-11 tester is used in test conditions where the basic flame temperature is at least 750℃ and tests the cable exposed to the flame that needs to maintain the circuit integrity.
• IEC 60331
- Test for electric cables under fir conditions – Circuit integrity
• IEC 60331 Part 11
- Apparatus – Fire alone at a flame temperature of at least 750˚C
• IEC 60331 Part 21
- Procedures and requirements – Cables of rated voltage up to and including 0.6/1kV
• KWS 409 : Wire of Fire Resistance (Fire-Resistence) - 5.14 Fire resistance test
- Test Chamber Size : (W) 1,600 x (D) 500 x (H) 500
- Heat Source : Ribbon type Propane Gas Burner
- Burner Dimension : (L) 500 x (W) 10 mm / Space of hole : 3.2mm
- Flame Failure device, Control thermocouples
- Pilot feed, Gas flow, Rotameter-type flowmeters
- Auto Ignition system
- Mass Flow Controller
; Gas : 15 SLPM / Signal Output : 0 ~ 5V / Accuracy : ±1 % fo F.S
; Air : 180 SLPM / Signal Output : 0 ~ 5V / Accuracy : ±1 % fo F.S
- Electric Control : Transformer & Slidacs : 3 Phase 3 wire, 100~1,000V
- DAQ System
; 16 channel Analog Input / Output, 200ks/s
; 16 channel Digital Input / Output
- Control Rack : (W) 730 x (D) 650 x (H) 1,400 / 19” Rack / Each Assembly Connector
Specification
Size
(W) 2,500 x (D) 1,800 x (H)1,600(Test Chamber)
Power
AC 220V / 20A
Weight
About 100 kg
Utilities
Propane Gas Valve System
• The burner has a Ventury Mixer structure and it’s a ribbon type propane gas burner with a front length of 500mm
• Structured with 3 rows of cross holes, Average front width of burner: 15mm, Hole diameter: 1.32mm, Distance between the center: 3.2mm.
• Allows a polished hole row in pilot hole for flame preservation in both faces of Burner plate

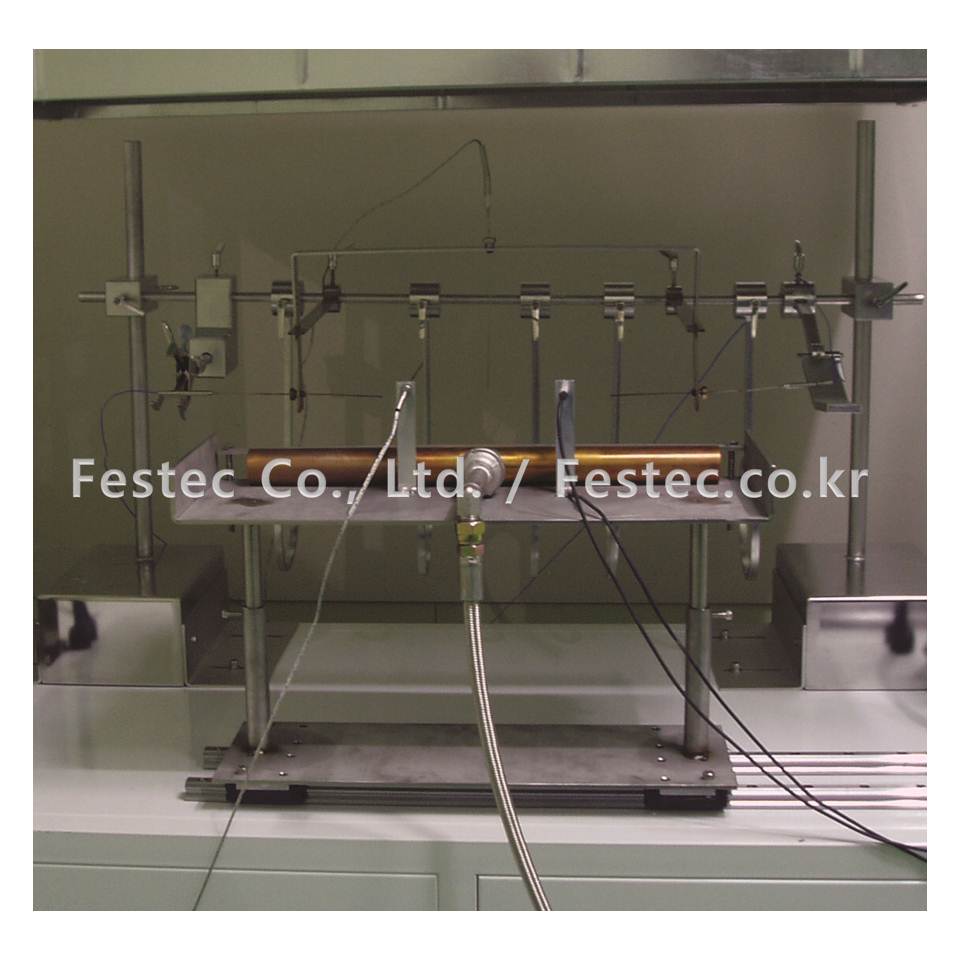

• A sample support is fixed with a clamp on the side to avoid movement and the other side allows heat spread in length.
• The central part of the cable is approx. 300mm separated and it’s supported by two metal rings. Besides the 2 metal rings there are other ground connected parts.
• The internal diameter of sample support ring is approx. 150mm made of metal, round shape with a 10±2mm diameter.
• The front of Burner position is located to be at least 200mm from chamber floor or at least 300mm from chamber’s wall surface.
• The horizontal axis of burner is located 70±10mm downwards from lowest part of sample cable and vertical axis of burner is located approx. 45mm from the vertical axis.
• Two thermocouple(A,B) are horizontally installed separated 45mm left and right of burner center-line to check if ignition input is within 750+50℃.
• Add for KWA 409(Korea Wire Shipbuilding Industry Cooperative) of Fire resistance test(options)
• It has 2 type of mode which manual mode by control panel and auto mode by computer software.
Before order, user can select it. It is customizing. And if order IEC 60331-11,12 and BS 6387, user can use one Slidacs system(various up to 1,000V power supplier). Cost should be down.
• Cable test description
• Manufacturer
• Test voltage
• Cable Bending Radius
• Requirements of applied performance – Test criterion or related standards
• Flame application time
• Voltage maintenance (ex. Fuse fails, interruption of circuit breaker)
• Rupture of conductor (ex. Lamp blackout)
