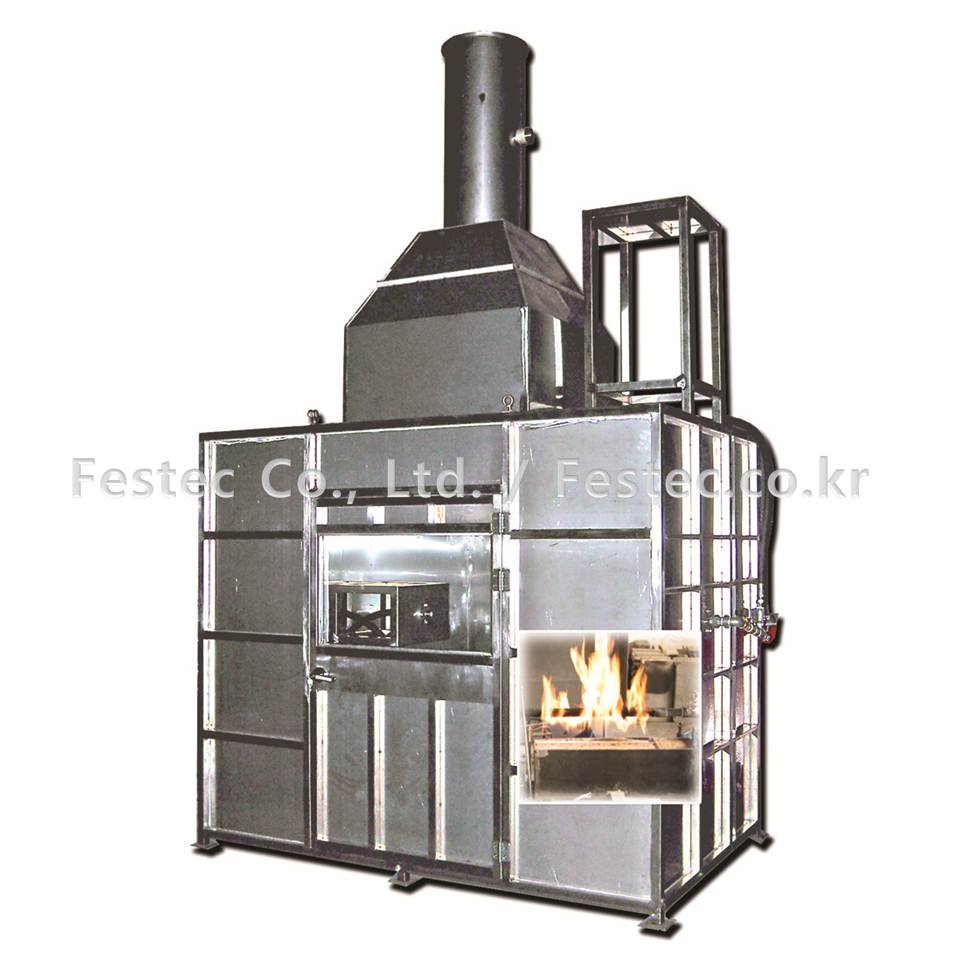

Fire Resistance Valve, Hose & Pipe Tester/FRT, fire resistance tester of casket accessories (ISO 19921&2, ISO 10497, FTP II Res A 753)
Fire resistance tester of Fire fighting fittings cope with the following three standards:
1) Fire resistance test of Valve ( ISO 10497)
2) Fire resistance test of hose assembly (ISO 19921 & 19922)
3) Fire resistance test of plastic pipes (FTP II Res A 753)
After applying fire imitation using a burner indicated in standards of various valves in internal pressure conditions, hose assembly of several nominal diameters and plastic casket/casket device, the device measures the watertight of each test.
ISO 19921 & 19922
- Fire resistance of metallic pipe components with resilient and elastomeric seals
ISO 10497
- Fire type-testing requirements and a fire type-test method for confirming the pressure-containing capability of a valve under pressure during and after the fire test.
FTP II Res A 753
- Guidelines for the application of plastic pipes on ships
ISO 15540 : Ships and marine technology -- Fire resistance of hose assemblies -- Test methods
ISO 15541 : Ships and marine technology -- Fire resistance of hose assemblies -- Requirements for the test bench
- Test Chamber Size : (W) 1,700mm x (D) 900mm x (H)2,000mm
- Hood Size : (W) 1,700mm x (D) 900mm x (H)2,000mm
- Duct Size : Ø400 x 2,000(L) mm
- Exhaust Fan : Armature Voltage : 180V / Revolution : 3000rpm / 1.5HP
- Heat Source
; Section Burner : (W)150mm x (D) 500mm / Nozzle : 20 ea/ 0.1m2 / STS 304
; Multiple Burner : (W) 100mm x (D)420mm / Jet burner 15 ea / STS 304
- Mass Flow Controller
; Gas(C3H8) Mass Flow Controller 150 SLPM / Signal output : 0 ~ 5V / Accuracy ±1 of F.S
; Air Mass Flow Controller 300 SLPM / Signal output : 0 ~ 5 V / Accuracy ±1 of F.S
- Vessel for water Size : Ø350 x L500 mm
- Booster pump : AC 220V / Max 20Bar
- Calorimeter cube Size : (W)38mm x(D)38mm x (H)38mm
K-type Thermocouple : Ø3.2, (L)235mm
- DAQ System : 2 channel Analog Input / Output Module / Range : ± 10VDC
2 channel Digital Input / Output Module / Range : ± 5VDC
Specification
Size
(W)1,7000 X (D)900 X (H)2,000 mm
Power
220VAC, 60Hz, 10A
Weight
300kg
Utilities
LPG Gas Cylinder
- Designed in simple GUI environment for user utilizing Labview development tools
- Designed to record and save data in real-time using automatic control Logic for test reproducibility
- Analyzes data and print report forms to meet user’s requirements.
- Designed to only substitute the burner in equivalent test chambers to enable the test of the three standards.
- FTP II Res A 753 test enables test of Level 1 ~ 3
- Made of Stainless Steel, the test chamber is heat and corrosion resistant
- Burner location can be regulated to calibrate various hose and valve tests.
- center temperature of flame
- flame temperature of water input terminal
- water temperature of water in casket input terminal
