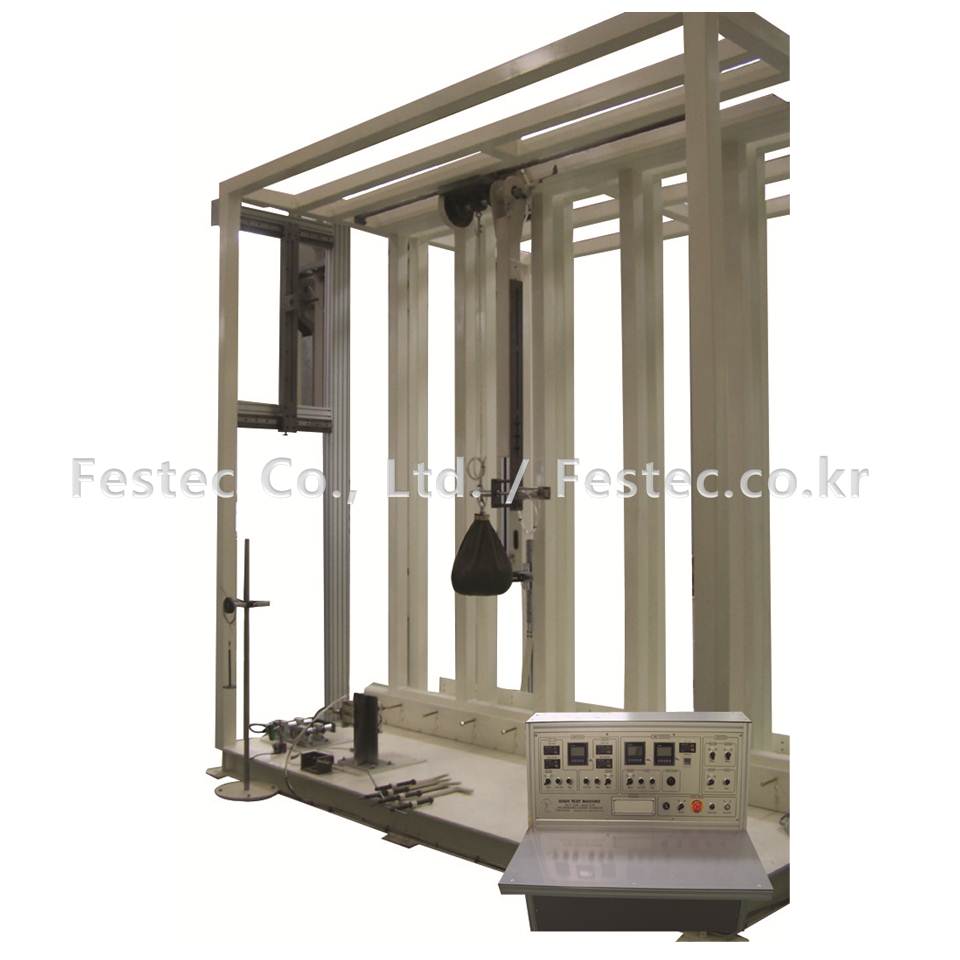

Door Set Mechanical Tester, BDM-425, KS F 3109, KS F 2236, KS F 2631
An equipment that evaluates the performance of the hinged and sliding door set that is manually handled to function as the entrance of the partition between the interior and exterior of the building (except rotating doors)


• KS F 3109 : twisting resistance strength, plumb load strength. Opening strength. repetition and shock resistance test
• KS F 2236 : Shock resistance test method for KS F 2236 Moon Set using a sand bag
• KS F 2631 : Boring plumb test method of the KS F 2631 Moon set
• Moon set tester

  - Main Control Case : (W)500mm x (D)500mm x (H)1,000mm

  - Shock resistance tester
    1. Main Frame : (W)3,550mm x (D)2,580mm x (H)3,500mm
    2. Sand Bag: Diameter : ¨ª350mm

   - Plumb/Boring Tester
     1. Load Cell :
       1) Range : 0 ~ 1,200N, Resolution : ¡¾10N
     2. Displacement Measurement System

   - Twisting tester
      1. Displacement Measurement System
        1) Resolution : ¡¾0.1mm

   - Sliding door roller tester
      1. Main Frame : (W)3,550mm x (D)2,600mm x (H)3,200mm

   - General and sliding door opening strength tester
      1. Load Cell
         1) Range : 0 ~ 1,200 N, Resolution : ¡¾10N

   - General and sliding door repetition tester
      1. Displacement Measurement System
          1) Resolution : ¡¾0.1mm

    - DAQ(Data Acquisition) System : USB Interface

    - Operation Program : Establishment of a process measuring 4 tests at once
Specification
Size 3,600 (W) ¡¿ 2,600 (L) ¡¿ 3,100 (H)
Power Voltage : 220 V-60 Hz
Weight 1,000 Kg
• Simultaneously test as internal shock, verticality load twisting, opening strength and repetition testing using the DAQ System can be acquire the Data and save it.
• It can be repetition test of hinged door by using Air Cylinder or Motor.
• It can be repetition test of sliding door by using Air Cylinder or Motor.
• It can be test of a fire door¡¯s shocking by using sand bag.
• It can be test of Verticality/Load testing and measure precise displacement using by digital displacement unit.
• It can be test of twist testing and measure precise twist range using by digital displacement unit.
• It can be measure opening strength of a hinged and sliding door using by load cell.
• It can be measure test number of times and time using by digital timer or counter.
• It can be test door of up to maximum 3,000(W) x 3,000(H)mm.
• It can be test sliding door which attached a hinged hoor.
• Should  be no problems regarding opening and use
• There shall be no problems with displacement current below 3mm and use
• There should be no harmful deformation from the 1st shock, and should not cause any problems in opening. Damage to the glass is not considered a problem.
