Radiant Panel Flame Spread Tester, ASTM E 162, ASTM D 3675

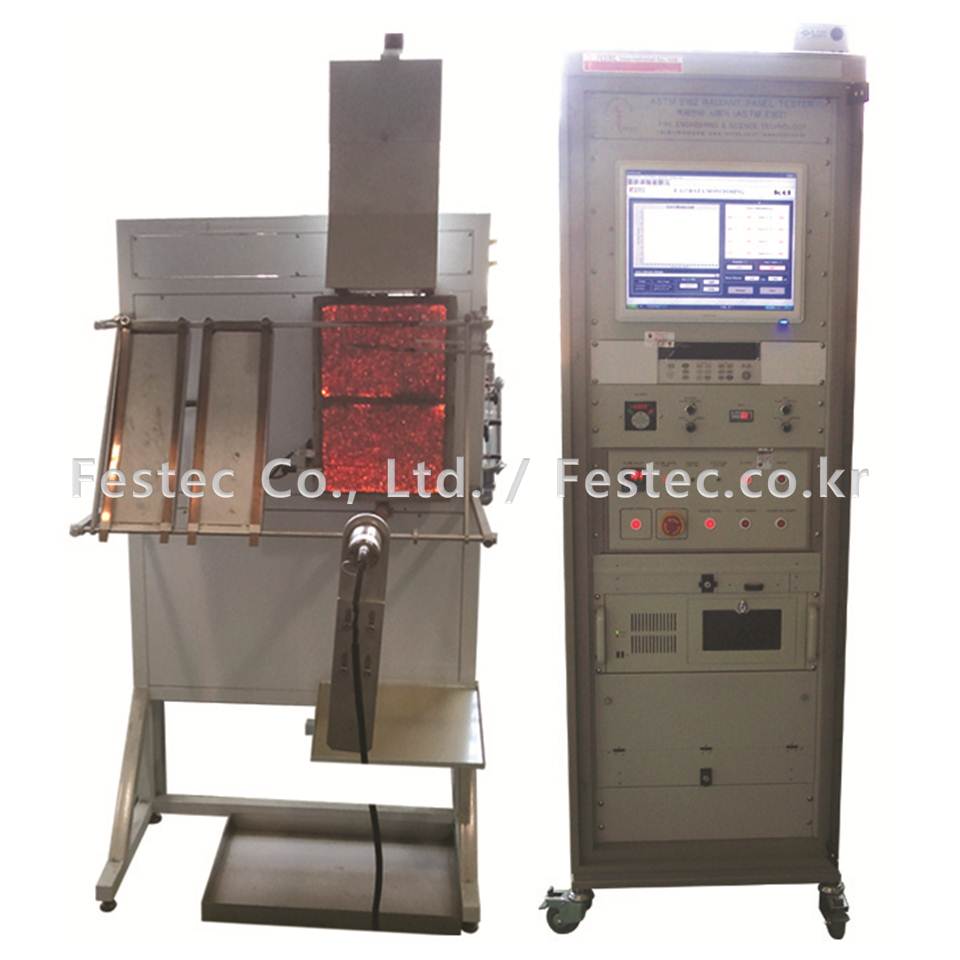

The Radiant Panel Flame Spread Tester is an equipment using gas ignited Radiant heat panel to test the surface combustibility of Building product (ASTM E 162) and cellular plastics (ASTM E 3675), Radiant Panel Index (Is) is measured by the flame radio-waves, Critical Heat Flux,(CHF) and Heat Release Rate(kW/§³).


• ASTM E 162: Standard Test Method for surface Flammability of materials Using a
                        Radiant Heat Energy Source
• ASTM D 3675:  Standard Test Method for surface Flammability of Materials using
                           A Radiant Heat Energy Source
• Base Structure Units
  - Frame dimension : 1,850 (H) X 700 (D) X 1,250 (L)
  - Electrical Power : 220 V AC, 60 Hz, 12 A
  - Sliding platform for loading of the test specimen
  - Radiant Panel (90¡Æ, Porous cement)
  - 19" Touch Screen Panel Computer for control & Acquisition Data

• Radiant Panel with Air and Gas Supply
  - Radiant Panel Size : 300 by 460 (mm)
  - Fine Brick : Max Temp : 815¡É (1,500¢µ)
  - Pilot Burner : Acetylene(0.5 l/min, 150 mbar)
  - Calibration Burner : Methane gas(95% purity, 20 l/min, 150 mbar)
  - Propane Burner : Pressure(1.0 l/s, 20 mbar)
  - Compressed Air Burner : 50 l/s, 700 Pa of water
  - Digital anemometer : 0.5 m/s

• Analysis & Controls
  - Heat Flux Meter : Schmidt - Bolter type, Range : 0 ~ 100 ¡¾ 10 §Ò/§³
  - Portable water cooling system for heat flux meter
  - Pyrometer for measuring radiant panel temperature
  - DAQ (Data Acquisition) System(GPIB/USB Interface)

• Application Software
  - ASTM  E 162 Operation & DAQ Program
  - Test Calibration Program
Specification
Size 1,850(w) ¡¿  700(D) ¡¿  1,250(H)
Power 220 V AC, 60 Hz, 12 A
Weight 300 kg
• Reflection panel is composed of a cast iron frame with vertically applied porosity fire resistant material with a 305X457mm size exposed reflection surface and is designed to function at 815 ¡É.
• The Calibration burner should have 1.8mm holes in 16mm intervals, and should be manufactured along the middle line.
• An exhaustion device with a 0.5 m/s airflow exhaustion rate is installed.
• In order to control the surface heat of the reflection panel, a 180¡É ~ 230¡É (Black body temperature) range will be given, and a ¡¾5¡É accuracy, fit to observe a surface of 250mm radius at 2 m distance.
• Exposure time and whether the specimen was completely
  destroyed or was expose for 15min.
• Average radiant panel index (Is) for each set of specimens,
  rounded to the nearest multiple of five.
• The simple ratio of a temperature rise of 100¡É to the heat
  input in kilowatts producing it. (Beta)
• Flame spread factor (Fs)
• Heat evolution factor (Q)
• Visual burning characteristics of Specimens
