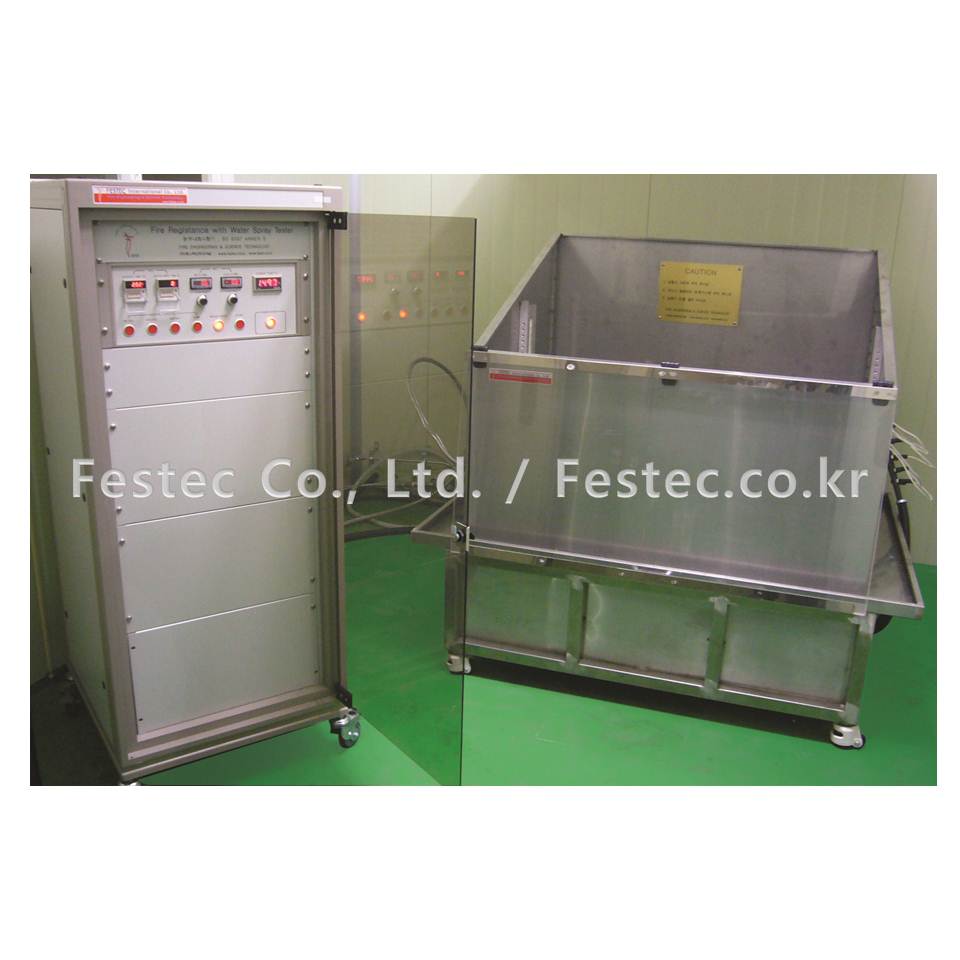

Fire Resistance Water Spray Tester, CFW-820, BS 6387
FESTEC’s BS 6387 Tester, BS 6386 standard is belong to British, is a testing device that checks for the standard level of current in the cable, and also checks the cable’s resistance for heat and water of the cable.
• BS 6387 - Performance requirements for cables required to maintain circuit integrity under fire conditions – Annex D.3 Resistance to fire with water
• Test Chamber Assembly
- Dimension : 1,220(W) x 940(D) x 900(H) mm
- Material : Stainless Steel 304
• Water Tank
- Dimension 1,180(W) x 1,250(D) x 350(H) mm
- Material : Stainless Steel 304
- Water Capacity : 230±30 L
• Pump Assembly
- Dimension : 460(W) x 285(D) x 405(H) mm
- Rpm : 750 ~ 1,200 Rpm
- Pressure : 12 ~ 40 Kg/Cm
• Calibration container
• Heat Source
- Ribbon type Propane Gas Burner
- Material : Stainless Steel
- Dimension of Burner Face : (L) 400 x (W) 10 mm
- Space of Hole : 3.2mm from one another
- Mixing System : Venturi Type Mixer
• Mass Flow Controller(MFC)
- Gas : Propane(C3H8)
- Flow Rate : 15 SLPM
• Mass Flow Controller(MFC)
- Gas : Air
- Flow Rate : 180 SLPM
• Pressure Gauge
• solenoid Valve
• Flashback Arrestor
• Electric Control
- Transformer & Slidac(Slide-AC) : 3 phase 3wire, 100 ~ 1,000V
- Indicator : AC 220V, M80 AC 1,000V
Specification
Size
1,000 (w) × 800 (D) × 3,750 (H)
Power
220 V AC, 60 Hz, 10 A
Weight
150 kg
Utilities
Auto Moving System, Heat Flux meter, Water Cooling System
• Heat source (Burner) has a Ventury Mixer structure. The length of burner’s front surface is 500mm, ribbon type propane gas burner.
• The standard burner’s front surface width is 15mm, the hole diameter is 1.32mm, the distance between the center is 3.2mm – 3 line of cross-row holes are design.
• In Burner plate, keep the flame on both sides of the pilot hole for polishing small hole line allowed.
• It has a sprinkler for water spray, so it sprays water equality in the cable.
• When spray the water, it protect for splashing out, it have a cover device on the upside.
• It allows the Calibration Bottle for water injection quantity of check and control.
• The pressure of the water support to the sprinkler is 2.5Kpa~3.5Kpa range can control.
• The injection quantity is 0.25ℓ/s/㎡~0.30ℓ/s/㎡.
• Don’t need water supply equipment and it have a tank under the chamber for keep the water rotated.
• It have a guide on the burner for protect water injection from the flame for turn off.
• It have a cover for power supply of the terminal to protect electrical short.
• From the burner supply, it can correct measure fire resource 650+50°.
• Voltage supplier device has each 3A or 2A fuse
• It has 2 type of mode which manual mode by control panel and auto mode by computer software.
Before order, user can select it. It is customizing. And if order IEC 60331-11,12 and BS 6387, user can use one Slidacs system(various up to 1,000V power supplier). Cost should be down.
Confirm any damage to the cable due to high temperature and water or the current status of approved power.
